Installing the model inscription at the rear

CAUTION: Laser beam
Injury hazard!

Do not look into the laser beam

Mount the special tool 2 407 566 on the tripod
Switch on laser (Position without automatic level)
Activate laser horizontally and vertically

Courtesy of BMW OF NORTH AMERICA, INC.
Position the special tool 2 407 566 to the rear of the vehicle

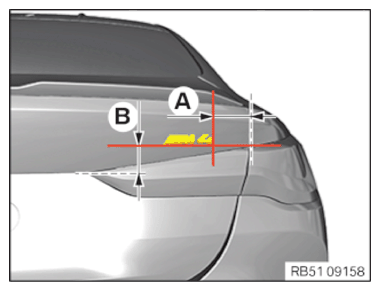

Align vertical laser beam (A) according to specified dimension

TECHNICAL DATA SPECIFICATION

Model inscription on the right side of the trunk lid
Dimension A from corner of trunk lid		175 mm

G14906381

Courtesy of BMW OF NORTH AMERICA, INC.

Align horizontal laser beam (B) according to specified dimension
Clean the adhesive area on the tailgate
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Adhere to the air drying time of 2 min
Detach the liner from the adhesive strip of model inscription on the right
Align the model inscription on the right with the laser beams as shown, position it on the tailgate and press on it
