Fitting the rear emblem

Check

• Check guide pins (1) and nozzles (2) for damage

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The guide pins (1) are damaged

  Measure

  • Replace the rear emblem

  Parts:  Rear emblem

  Result

  » The nozzles (2) are damaged

  Measure

  • Replace the nozzles (2)

  Parts:  Grommets

• Remove adhesive residue from the trunk lid

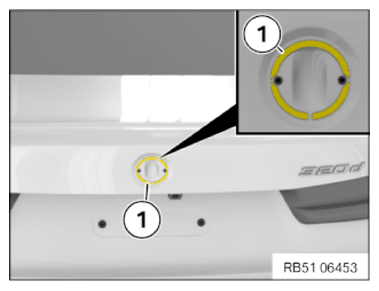

• Clean the adhesive area (1)
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Adhere to the air drying time of 2 min

  Courtesy of BMW OF NORTH AMERICA, INC.

• Coat guide pins (2) of the rear emblem (1) with lubricant
  INSTALLATION AID SPECIFICATION



  Lubricants G14

  900 ml, Can

  83232360412

• Detach the liner from the bonding surfaces of the rear emblem (1)
• Insert the rear emblem (1) into the nozzles with guide pins (2) and press on all sides

  Courtesy of BMW OF NORTH AMERICA, INC.
