Installing the roof trim strip

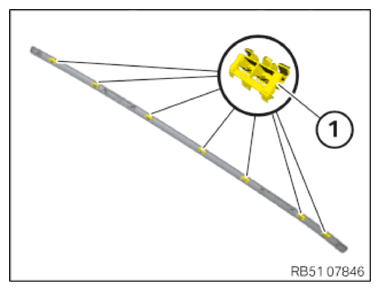

- Check whether the clamps (1) are present and have damage
Defective or missing clamps (1) need to be replaced
- Position the roof trim strip on the roof
The position of the clamps (1) must match the respective holder on the roof
- If necessary, shift the clamps on the roof trim strip

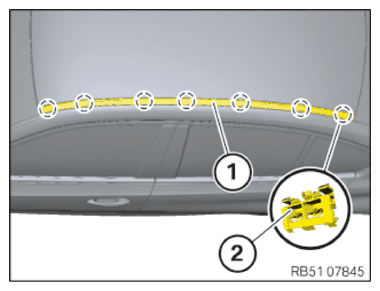

- Engage the roof trim strip (1) on the roof frame from the front starting at the clamps (2)
