Remove the trim from the side panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage
Careless handling of tools and sharp-edged components. Scratches, surface damage
- Protect working area
- Handle tools and components carefully
NOTE:
Description is for left component only. Procedure on the right side is identical

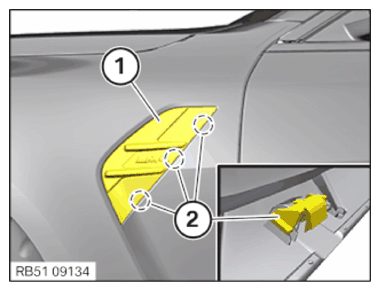

- Carefully release the trim (1) at the side panel from the clamps (2) using the special tool 0 493 681 (64 1 020) and feed out of the side panel to the rear
