Body Equipment -- Repair (1 Of 2) -- M3 (G80)
>>
51 13 Trim Parts, Covers, Handle Strip
>>
51 13 045 Removing and installing/replacing side panel trim on left or right (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Install the trim on the side panel
Install the trim on the side panel

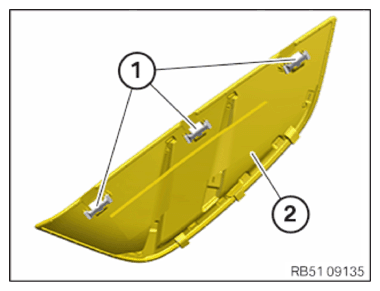

Check if clamps (1) and the mounts of clamps (1) are available and check them for damage
Damaged or missing clamps (1) must be replaced
If the mounts are damaged, trim (2) must be replaced
Courtesy of BMW OF NORTH AMERICA, INC.
Guide the trim (1) at the side panel forward and engage it at the clamps (2)
Courtesy of BMW OF NORTH AMERICA, INC.
