Installing the front end

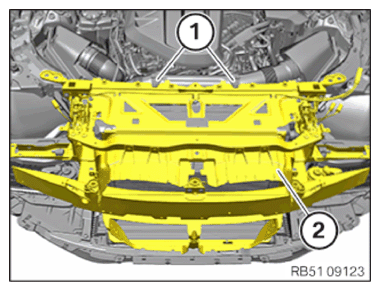

• Carefully feed in the front end (2)

  In doing so, connect all connectors and fasten the wiring harness to the front end

• Mount the expanding rivets (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side

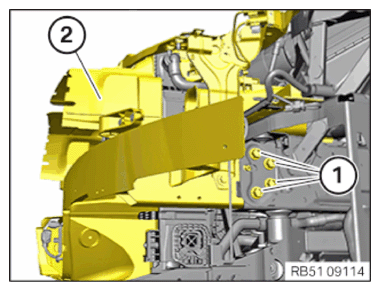

• Tighten the screws (1)
  TIGHTENING TORQUES SPECIFICATION



  Front bumper bracket to engine mount
  Hexagon screw with flange Replace screw	Tightening torque	100 Nm
  	Angle of rotation	180°

  Courtesy of BMW OF NORTH AMERICA, INC.

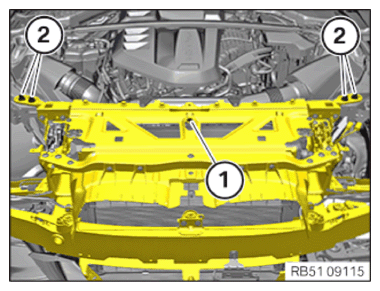

• Replace screws (2)

  Parts:  Screws

• Tighten the screws (2)
  TIGHTENING TORQUES SPECIFICATION



  Rear top cross connection to wheel arch carrier support
  M10x20 screw Replace screw	Joining torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1)
  TIGHTENING TORQUES SPECIFICATION



  Reinforcement strut to rear cross connection
  Hexagon screw M10x35	Tightening torque	56 Nm

  NOTE: Perform the steps on the right and left side

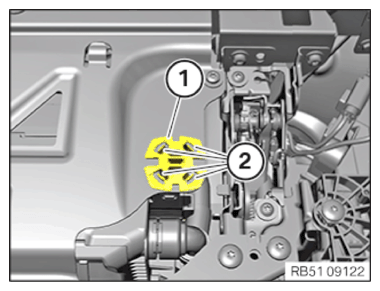

• Install the cooler module mount (1) and engage it at the detents (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

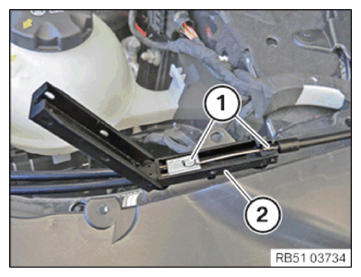

• Position Bowden cable bracket (2) together with the Bowden cables and hook Bowden cable (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

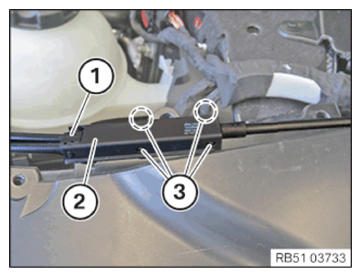

• Clip the Bowden cable bracket (1) into the body
• Close lid (2) and engage it into snap-in lugs (3)

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE LEFT AND RIGHT AIR DUCT .
• Refer to FASTENING THE LEFT AND RIGHT EXTERNAL RADIATOR .
• Refer to INSTALLING THE PEDESTRIAN PROTECTION SENSOR .
• Refer to INSTALLING THE LEFT AND RIGHT HEADLIGHT .
• Refer to REPLACING UPPER ADAPTER FOR BUMPER TRIM PANEL .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to ADJUSTING HEADLIGHTS .
