Installing the ultrasonic sensor
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details
- Check decoupling ring (1) for damage and, if necessary, replace it
 Courtesy of BMW OF NORTH AMERICA, INC.
|

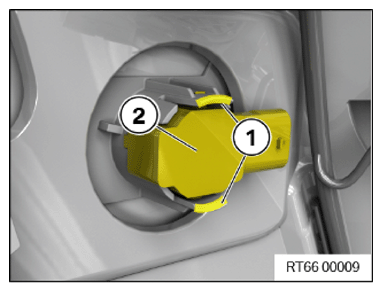

- Insert the ultrasonic sensor (2) and clip it into the detents (1)
- Perform the steps on all other ultrasonic sensors
 Courtesy of BMW OF NORTH AMERICA, INC.
|
