Removing the B-pillar trim panel at left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Removing the B-pillar trim panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Remove cover cap (1) and release screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

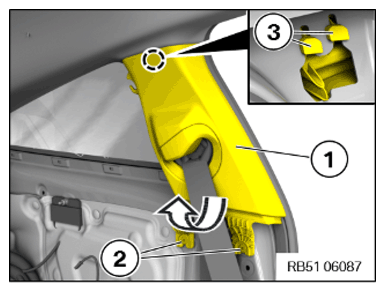

Unclip clips (2).
Teed B-pillar trim panel (1) out of the lip of edge protection and guides (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the upper seat belt (2) out of the B-pillar trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.
