Installing 3rd brake light trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Check

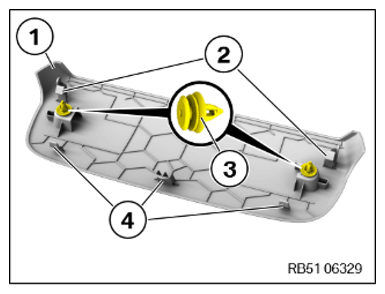

Check clips (3) for damage and replace if necessary.
Check detents (2) and guides (4) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The lock or guide is damaged.

Measure

Replace the trim of the auxiliary brake light.

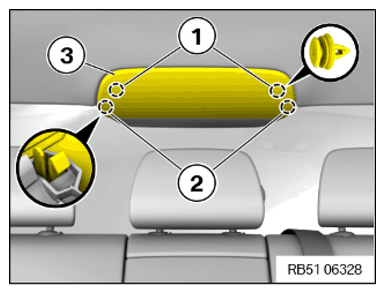

Align 3rd brake light trim (3) from the bottom and clip in with detents (2).
Clip in clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check clips (3) for damage and replace if necessary.
Check detents (2) and guides (4) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The lock or guide is damaged.

Measure

Replace the trim of the auxiliary brake light.

Align 3rd brake light trim (3) from the bottom and clip in with detents (2).
Clip in clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
