Install output shaft on left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

Installing the output shaft

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: TECHNICAL INFORMATION
If the driven shaft is reused, the circlip must be replaced.

NOTE: TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed.
Check component and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the gearing of the output shaft for damage and replace damaged parts if necessary.
Check the bellows for damage and replace damaged parts as needed.
If reusing the output shaft:
Replace the circlip (1).

Parts: Circlip
Coat the contact surfaces (2) using approved final drive transmission oil.
NOTE: The illustration shows the procedure on the front axle differential. The procedure on the bearing bracket is identical.
Fold open the assembly protection ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the transmission end joint of the output shaft.
If the deflection angle of the output shaft is too large, it can damage the transmission end joint during installation.
- Guide the output shaft with the joint housing using both hands and position it on the front axle transmission or bearing block. In doing so, push the output shaft and the joint housing jerkily but carefully over the circlip.
- Check whether all 3 bearings of the tripod are correctly positioned by shifting the output shaft.
Courtesy of BMW OF NORTH AMERICA, INC.

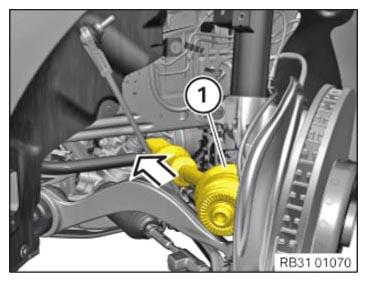

Feed the output shaft (1) with the joint at the transmission end in the arrow direction into the front axle differential or the bearing bracket.
Do not allow the output shaft (1) to engage into the front axle transmission or the bearing block!

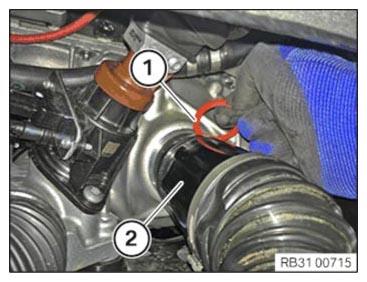

Pull on the tab of the installation protection ring (1) until one of the two predetermined breaking points breaks.
Pull out and dispose of the installation protection ring (1).
Push the output shaft (2) in a jerky manner into the front axle differential up to the stop or the bearing bracket.
The output shaft (2) must snap in noticeably and audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

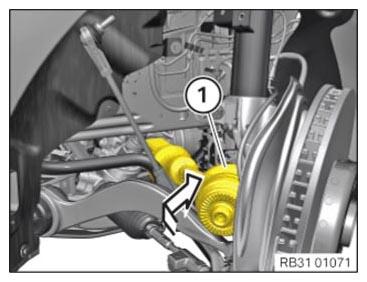

Feed in the output shaft (1) at the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the anti-roll bar link (2) on the spring strut.
Replace nut (1).
Parts: Nut

Tighten the nut (1), if necessary, counter support the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Front anti-roll bar link to anti-roll bar/spring strut
M10 Replace nut.	tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

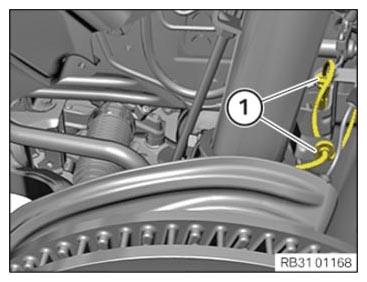

Secure the cable for wheel speed sensor to the holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.
