If installed: Removing front radar sensor (FRS) with bracket

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

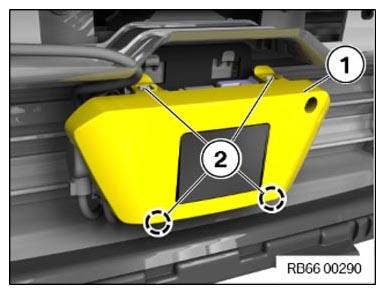

Release the cover (1) from the detents (2) and remove towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

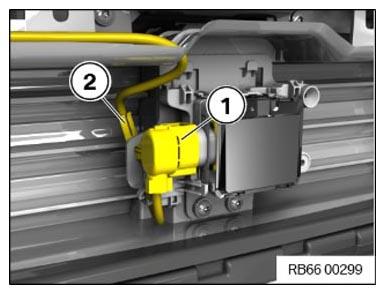

Unlock plug connection (1) and disconnect.
Unclip the vehicle wiring harness with the bracket (2) and place aside.

Courtesy of BMW OF NORTH AMERICA, INC.

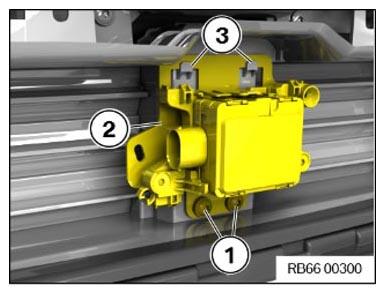

Mark the position of the holder (2) for the front radar sensor (FRS).
Loosen screws (1).
Feed out the front radar sensor (FRS) with the bracket (2) from the lugs (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
