Removing special tool from the cylinder head
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

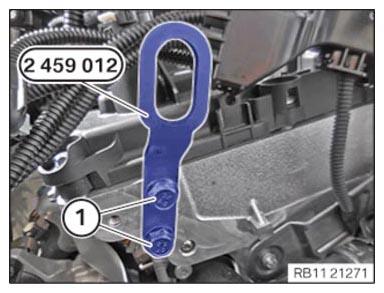

- Loosen screws (1).
- Guide the special tool 2 459 012
out and remove.

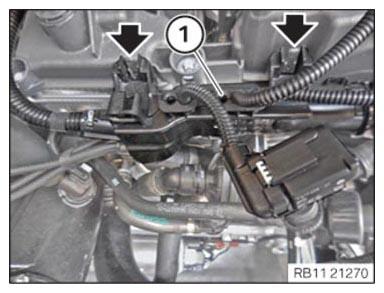

- Feed in and install the wiring harness section (1) for sensor system 2.
- Make sure that you can hear the locks (arrows) engage.
