Preparing the special tool
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

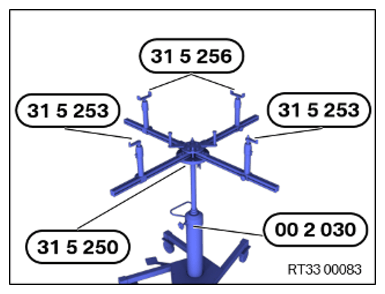

- With the help of a support person, fully attach special tool 0 495 567 (31 5 250) to special tool 0 490 133 (00 2 030).
- Insert special tool 0 495 819 (31 5 253) in the telescopic supports of one profile rail pair.
- Insert special tool 0 495 822 (31 5 256)
in the telescopic supports of the other profile rail pair.
