Prepare the spring tensioner
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
- Basic version:
Be sure to use the coil spring with the special tool 2 240 482 and that the pressure plate (1) is tensioned.
- Version Sport and BMW M Performance Automobile:
Make sure that the coil spring is tensioned with two pressure plates (1).
Preparing the spring tensioner (basic version)
NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).- Check the protective insert for wear or damage and if necessary, replace the protective inserts.

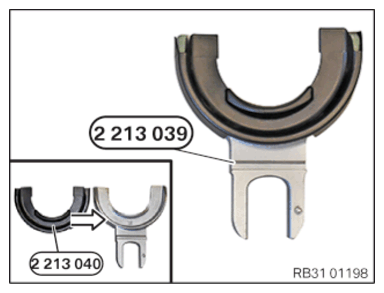

- Mount special tool 2 213 040 (31 3 364)
on special tool 2 213 039 (31 3 382)
in the arrow direction.
Special tool 2 213 039 (31 3 382) absolutely must be used with the protective insert!

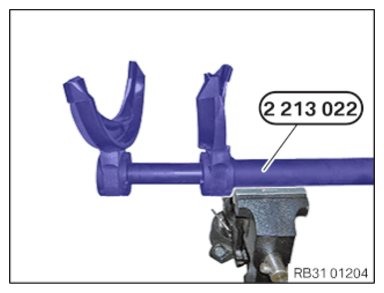

- Clamp special tool 2 213 022 (31 3 340) in the vice.

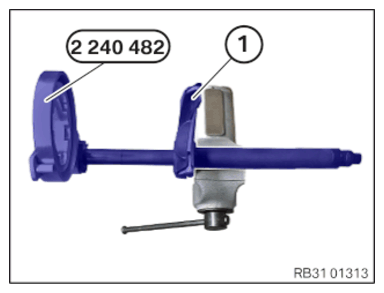

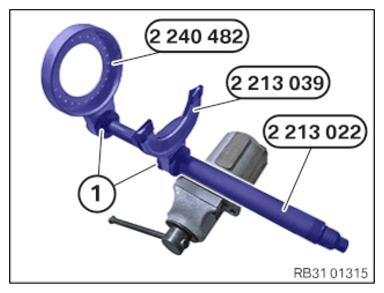

- Position special tools 2 213 039 (31 3 382) and 2 240 482 on special tool 2 213 022 (31 3 340) from above until you can feel and hear the retaining bolts (1) snap in.
- Check the positions of the special tools 2 213 039 (31 3 382)
and 2 240 482
and correct as needed.
- Position special tool 2 458 483 on the mounting plate.
- Position special tool 2 240 486
on the mounting plate.
The threaded connection is made via bores 7 and 15.
- Turn special tool 2 458 483 until special tool 2 240 486 can be screwed into the prescribed bores.
- Hand-tighten the screws (1).

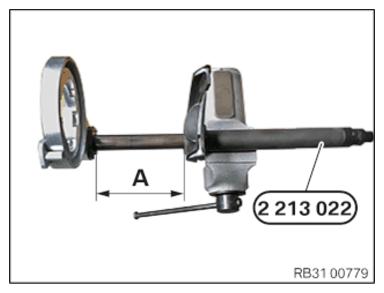

- Adjust the special tool 2 213 022 (31 3 340)
to dimension (A).
Dimension (A) = 150 mm to 175 mm
Preparing spring tensioner (Sport and BMW M Performance Automobile)
NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).- Check the protective insert for wear or damage and if necessary, replace the protective inserts.
- Mount special tool 2 213 040 (31 3 364)
on special tool 2 213 039 (31 3 382)
in the arrow direction.
Special tool 2 213 039 (31 3 382) must be prepared twice and must be used with the protective insert!
- Clamp special tool 2 213 022 (31 3 340) in the vice.

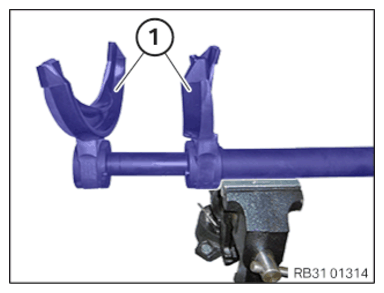

- Position the pressure plates from above on special tool 2 213 022 (31 3 340) until you feel and hear the retaining bolts snap in.
- Check the position of the pressure plates, correct if necessary.

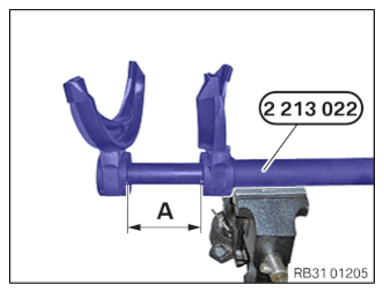

- Adjust the special tool 2 213 022 (31 3 340)
to dimension (A).
Dimension (A) = 90 mm - 95 mm
