Install left and right wiper arm
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing left and right wiper arm
NOTE:
TECHNICAL INFORMATION
The wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate wiper system 1x to ensure wiper system is in the correct installation position.
The wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate wiper system 1x to ensure wiper system is in the correct installation position.
- Connect the wiper arm (3).

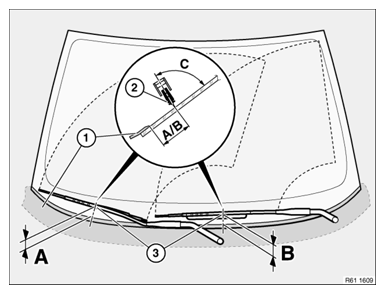

- Correctly position the wiper arm (2) in relation to the window edge (1).TECHNICAL DATA SPECIFICATION
Distance from window pane edge to wiper blade Wiper arm right (A) 57.5 ± 5 mm Wiper arm left (B) 63.3 ± 4 mm - Tighten nut (2).TIGHTENING TORQUES SPECIFICATION

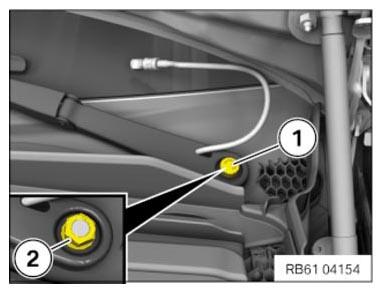

Windshield wiper arm Combination hexagon nut tightening torque 35 Nm - Connect the protective cap (1).

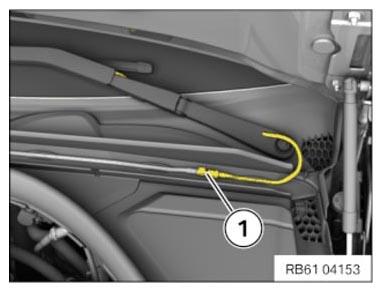

- Feed the washer fluid hose (1) into the guide of the windshield panel and connection at the separation point.
