If installed: Partially release the engine oil cooler

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: TECHNICAL INFORMATION
Work must be carried out carefully in order to avoid component damage.

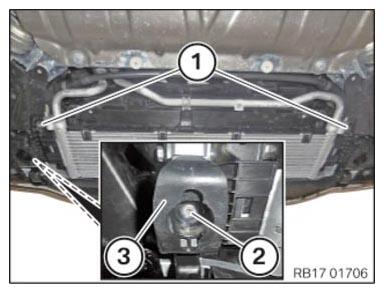

Loosen screws (1).
Drill out the left rivet (2).
Remove the left damper (3).

Courtesy of BMW OF NORTH AMERICA, INC.

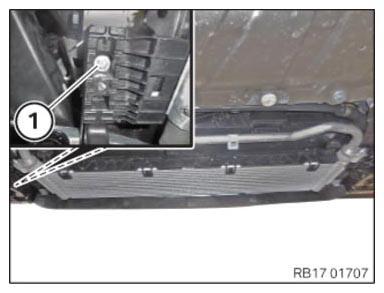

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

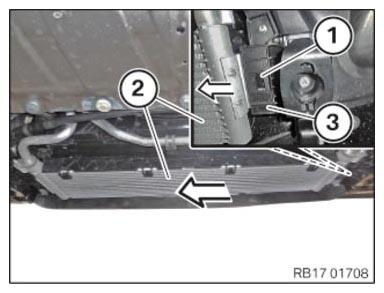

Unlock lock (1).
Feed out the engine oil cooler (2) from the bracket (3) in the arrow direction and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

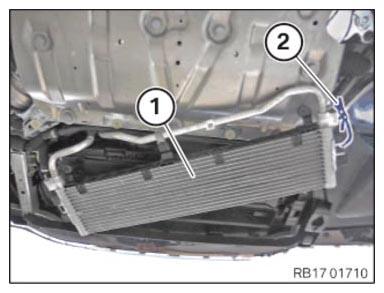

Fix the engine oil cooler (1) with a cable tie (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
