Fastening the wiring harness section to the left shock tower

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

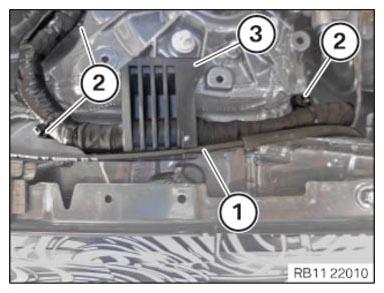

Feed in and position the wiring harness section (3) on the left shock tower.
Secure clamps (2).
Insert and install the cable linkage (1) on the front flap.

Courtesy of BMW OF NORTH AMERICA, INC.
