Detach transmission cross member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

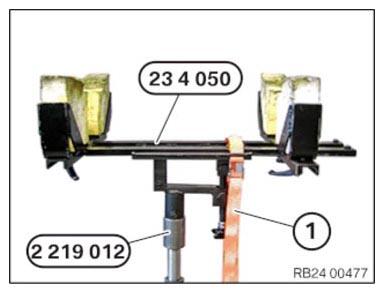

- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012.
- Secure the transmission with the luggage strap (1).

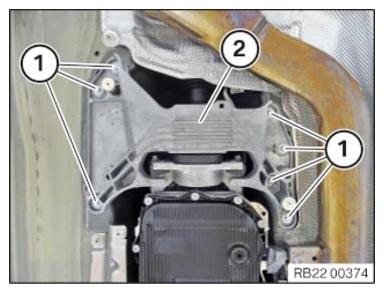

- Loosen screws (1).
- Release the transmission cross member (2).
- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012.
- Secure the transmission with the luggage strap (1).
- Loosen screws (1).
- Lower the transmission cross member with the automatic transmission.
