Removing the center convertible roof brace
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Battery charger connected.
CAUTION:
Folding up of convertible top through loss of pressure in hydraulic cylinders.
Injury hazard! Injury hazard by trapping!
Injury hazard! Injury hazard by trapping!
- When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

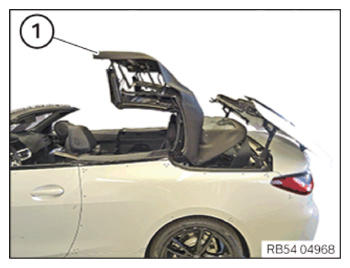

- Bring the convertible top (1) in the half opened position.
Secure the convertible top (1) from collapsing by using the support 2 452 010 if necessary.

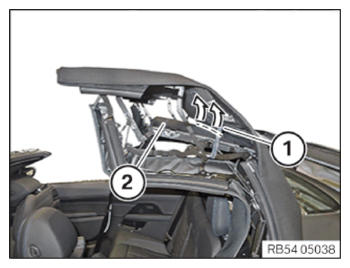

- Feed out the edge stripping of the convertible top fabric (1) in arrow direction from the convertible top bow (2).

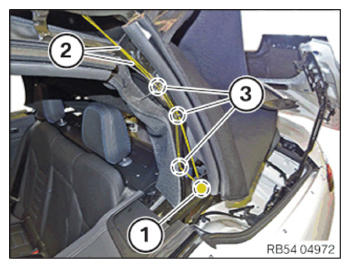

- Release the retaining clip (1).
- Guide out bolt (2).
- Guide the tension cable (3) out of the guides (4).NOTE: Document the position of the tension cables in the guides before removal.

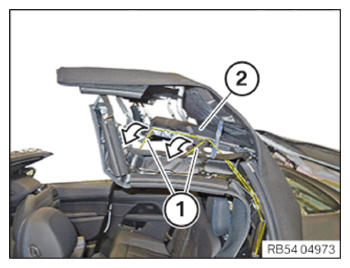

- Feed out the tension cable (1) further in arrow direction from the guides on the convertible top bow (2).

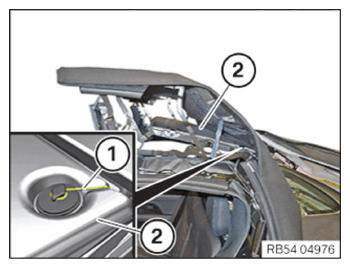

- Unhook the tension cable (1) on the convertible top bow (2).NOTE: Perform the steps on the left and right side.

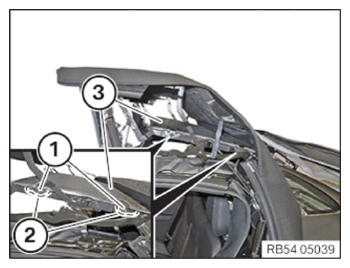

- Mark the position of the convertible roof brace (3) in the areas (2).
- Loosen the screws (1) and guide out the convertible roof brace (3) with the help of a support person.
