Installing the hold-down buffer for the convertible top

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

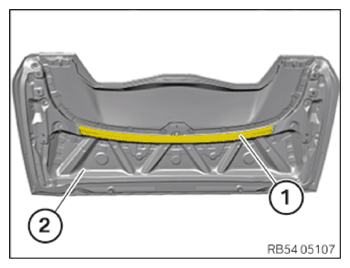

Remove adhesive residue on the convertible top compartment lid in the area (1).
Clean bonding surface (1) with the cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

Courtesy of BMW OF NORTH AMERICA, INC.

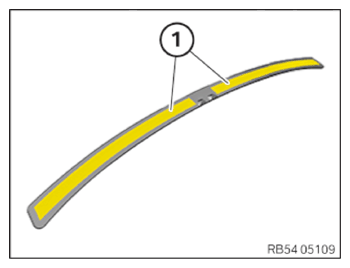

Detach the liner (1) from the hold-down buffer.

Courtesy of BMW OF NORTH AMERICA, INC.

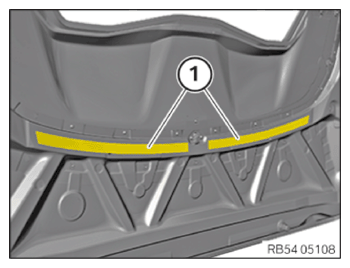

Position the hold-down buffer (1) on the convertible top compartment lid (2) and press it on.

Courtesy of BMW OF NORTH AMERICA, INC.
