Installing the trim strip of the convertible top compartment lid
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

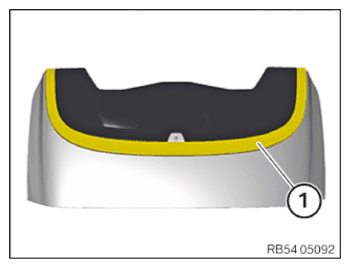

- Feed in and position the trim strip of the convertible top compartment lid (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

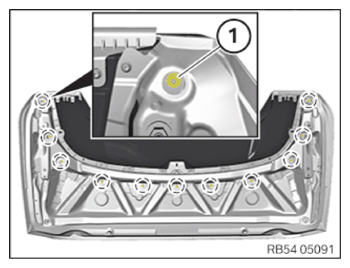

- Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Trim strip to convertible top compartment lid |
| Nut |
Tightening torque |
2.3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
