Install the mechanics of the panorama glass roof
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

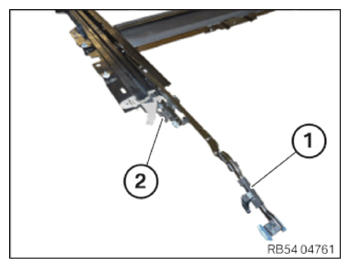

- Feed mechanics (1) into the slide/tilt sunroof frame and attach the driver (2) .
- Push the mechanics (1)
further forwards into the slide/tilt sunroof frame.

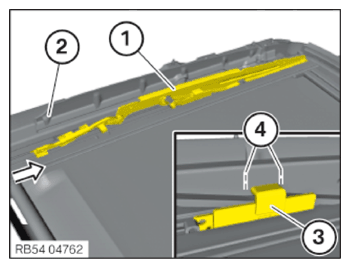

- Push the mechanics (1) into the slide/tilt sunroof frame (2) up to the limit position.
- Push the slider (3)
further forward until they are found between the marks (4)
on the mechanics.
- Guide the stopper of the mechanics (1)
into the slide/tilt sunroof frame (2)
and position.

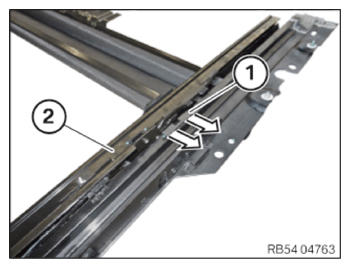

- Feed the limit position of the mechanics (1) into the recess on the slide/tilt sunroof frame and move in arrow direction until the retaining lug (2) engages.
