Remove the backrest cover from front seat-backrest
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING DRIVER'S SEAT .
- Refer to MOUNTING THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
- Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to REMOVING THE HEAD RESTRAINT .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
- Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .
- Refer to REMOVING THE DRIVE MOTOR FOR THE HEADREST HEIGHT ADJUSTER .

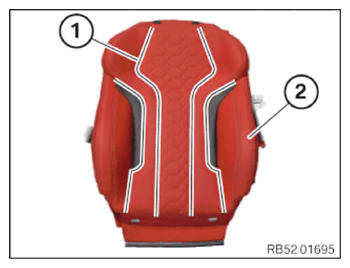

- Loosen all clamp on the trim wires (1) .
- Remove the backrest cover (2) from the upholstery.
- Completely remove clamps from the backrest cover (2) and the cushion.
