Install right band elimination circuit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

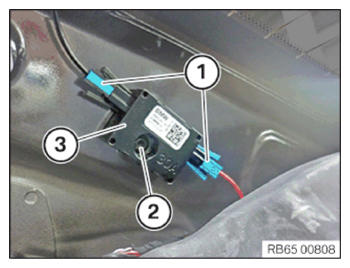

- Correctly position the band elimination circuit (3) and tighten the screw (2).
TIGHTENING TORQUES SPECIFICATION
| Band elimination circuit to C-pillar | ||
| tightening torque | 4.6 Nm | |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING C-PILLAR TRIM PANEL .
