Install the tweeter in the side trim panel at the rear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

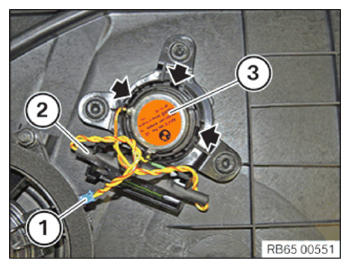

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Attach the tweeter (3) and engage into the locking mechanisms (arrowed).
- Clip in the resistor (2).
- Connect plug connection (1) and lock.
- If necessary, position the acoustic fleece correctly.
Follow-up work
- Refer to INSTALLING THE SOUND INSULATION ON THE SIDE TRIM PANEL .
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING SEAT BELT EXTENDER HAND .
