Installing the rear ride height sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

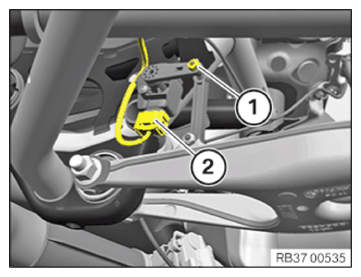

- Position the rear ride height sensor (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Front/rear ride height sensor to holder | ||
| Oval-head screw | Tightening torque | 2 Nm |

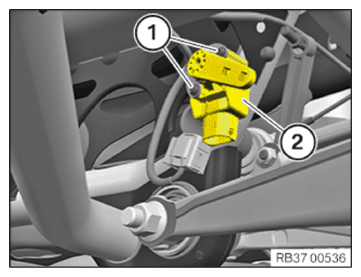

- Connect connectors (2) and lock.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Attachment rod to rear ride height sensor | ||
| M6 Replace nut. | Tightening torque | 8 Nm |
Follow-up work
- Refer to CARRYING OUT RIDE HEIGHT ADJUSTMENT .
- Refer to ADJUSTING HEADLIGHTS .
- Refer to RESETTING THE TIRE PRESSURE MONITOR .
