Replace shock absorber
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Releasing and tightening the nut on the support bearing or spring strut support bearing with an impact screwdriver is prohibited.
Releasing and tightening the nut on the support bearing or spring strut support bearing with an impact screwdriver is prohibited.

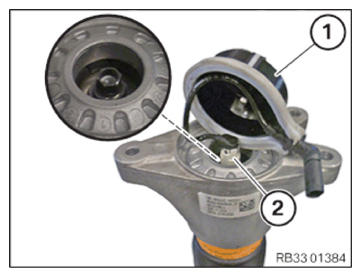

- Remove centering cap (1).
- Detach connector (2) from the shock absorber.
- Release nut (1) with special tool 2 360 213 . Counter hold it using standard tools (SW10) (3) in the process.
- Remove the support bearing (2).

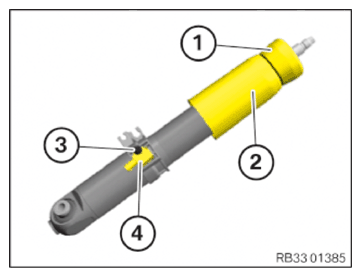

- Remove the auxiliary damper (1) with the protective tube (2).
- Loosen screw (3).
- Remove the rear vertical acceleration sensor (4).
- Replace the shock absorber.
Parts: Shock Absorbers
- Position the rear vertical acceleration sensor (1) in holder (2).
- Tighten the screw (3) on the rear vertical acceleration sensor (1).
TIGHTENING TORQUE SPECIFICATIONS
| Vertical acceleration sensor to spring strut shock absorber | ||
| M6 | tightening torque | 9 Nm |
- Check the auxiliary damper (1) and the protective tube (2) for damage and replace if necessary.
- Position the auxiliary damper (1) and the protective tube (2).
- Position support bearing (2).
- Replace nut (1).
Parts: Nut
- Tighten the nut (1) with the special tool 2 360 213 . Counter hold it using standard tools (SW10) (3) in the process.
TIGHTENING TORQUE SPECIFICATIONS
| Support bearing on shock absorber | ||
| M14 Replace nut. | Tightening torque | 38 Nm |
- Connect connector (2).
- Secure the adapter cable to centering cap (1).
- Insert the centering cap (1) on the support bearing.
