Installing the adapter for the trim of the instrument cluster

Check

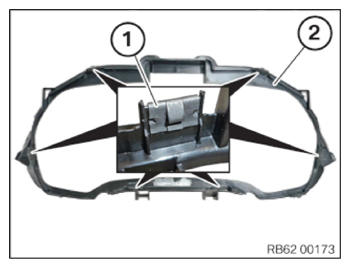

• Check the trim detailings (1) and the guides on the adapter (2) for the trim for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The trim detailings (1) or the guides are damaged.

Measure

• Replace the adapter (2) for the trim.

Parts:  Adapter

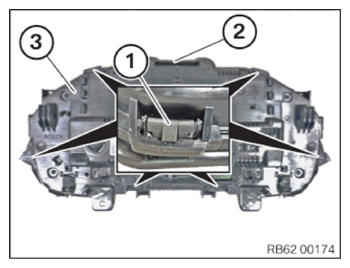

• Position the adapter (2) for the trim on the instrument cluster (3) and clip it in.

The trim detailings (1) must snap-in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
