Remove the centrifugal disk at the transfer box (VTG) (ATC 13-1)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to RELEASING THE TRANSMISSION BEARING SUPPORT .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
- Refer to REMOVING THE TRANSFER BOX (VTG) .

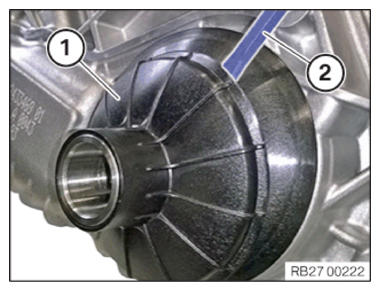

- Lever off the centrifugal blade (1) backwards using a slotted screwdriver (2) and remove.

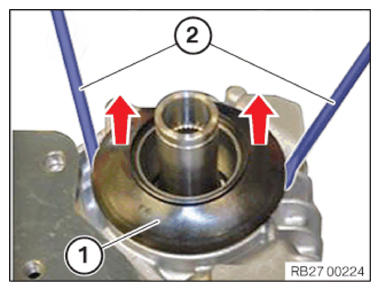

- Remove the protective cap (1) upwards using 2 slotted screwdrivers (2).
