Removing the outer seat trim (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

Protect surfaces from damage.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING OUTER COVER ON FRONT SEAT .

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

Protect surfaces from damage.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

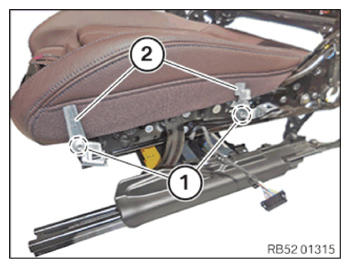

Loosen screws (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

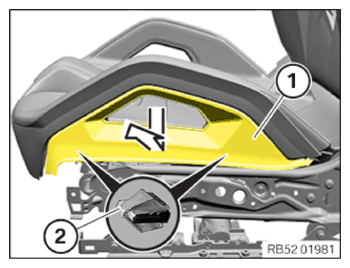

Carefully unclip the outer seat trim (1) from the clips (2) using a suitable tool.
Remove the seat trim (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
