Removing the badge in the head restraint
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For a better overview the removed condition is shown here.

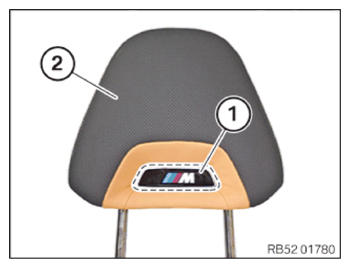

- Use a suitable tool to remove the badge (1) from the head restraint (2) in the marked area.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

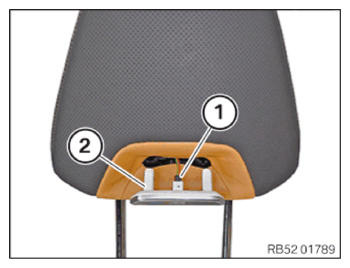

- Unlock plug connection (1) and disconnect.
- Remove the badge (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
