Remove thigh support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

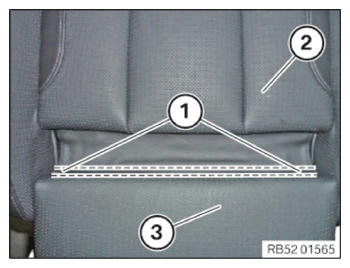

- Shift the thigh support (3) completely to the front.
- Detach the edge stripping (1) from the seat cover (2) from the thigh support (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

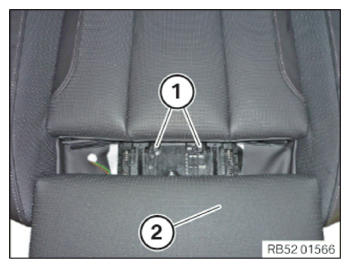

- Loosen screws (1).
- Guide out the thigh support (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

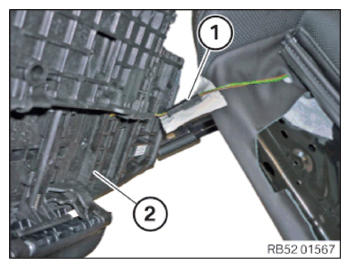

- Unlock plug connection (1) and disconnect.
- Remove the thigh support (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
