Removing the cushion for the inner front seat (CSL)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
Preliminary work
- Refer to REMOVING THE STRAP FITTING .
- Refer to REMOVING DRIVER'S SEAT .
- Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNT THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
- Refer to RELEASING THE GROUND CABLE OF THE SEAT OCCUPANCY MAT (CIS) .
- Refer to REMOVING THE SUPPORT FOR FRONT SEAT (CSL) .
- Refer to REMOVING THE SUPPORT FOR FRONT SEAT OF REAR SEAT BACKREST (CSL) .
- Refer to REMOVING THE FRONT LOWER STRAP (CLS) .

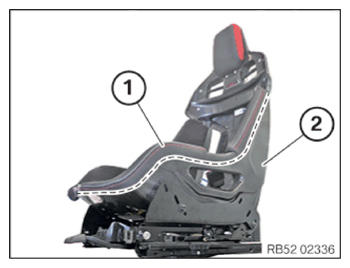

- Carefully unclip the seat cover (1) in the marked area from the seat pan (2).

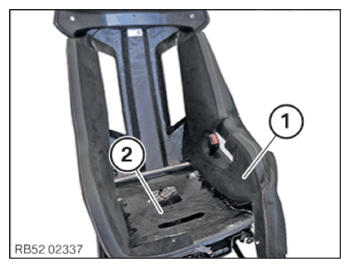

- Feed out and remove the cushion for the inner front seat (1) from the seat pan (2).
