Installing the radial shaft seal for the torque converter (GA8HP75Z, GA8HP76Z, GA8HP95Z)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Replace screws (1) .
Parts: Screws

It is essential to use the new parts from the drive repair kit for this.

The 14 Torx screws contained in the drive repair kit come with a sealing ring.

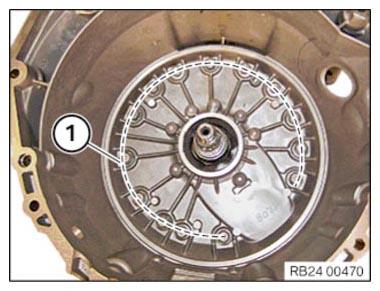

Replace and hand-tighten the screws (1) along the dotted line.
The screws (1) must be replaced one at a time. Always replace one bolt (1) after the other.

Courtesy of BMW OF NORTH AMERICA, INC.

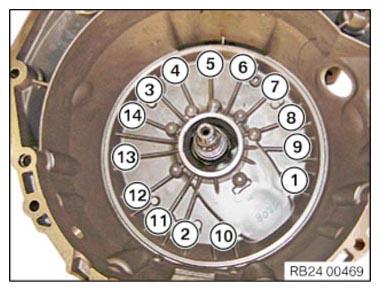

Tighten the screws in order from (1) to (14) .

TIGHTENING TORQUE SPECIFICATIONS

Centering plate on the transmission housing
M8x74 Replace screws	Joining torque Angle of rotation	10 Nm 90°

Fig 1: Transmission Housing Centering Plate Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install the O-ring on the drive shaft.
Oil the sealing lip of the radial shaft seal with transmission oil.
Strike in the radial shaft seal (1) with the special tool 0 496 719 (24 1 410) up to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TORQUE CONVERTER .
Refer to INSTALLING THE AUTOMATIC TRANSMISSION (GA8HP76Z) .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
Refer to SECURING THE HYDRAULIC LINES TO THE TRANSMISSION .
Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING FRONT HEAT SHIELD .
Refer to INSTALLING THE REAR HEAT SHIELD .
Refer to INSTALLING THE LEFT THRUST FIELD .
Refer to INSTALLING TANK COVER .
Refer to INSTALLING TRANSMISSION CROSS MEMBER .
Refer to INSTALLING THE INTERMEDIATE PIPE .
Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALLING THE CHARGE AIR LINE .
Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
Refer to INSTALLING FAN COWL .
Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 4 TO 6 .
Refer to PARTIALLY REMOVING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
