Removing the radial shaft seal for the output flange
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to RELEASING THE TRANSMISSION BEARING SUPPORT .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to PARTIALLY LOOSENING THE PROPELLER SHAFT .
- Refer to RELEASING THE FRONT PROP SHAFT ON THE FRONT AXLE TRANSMISSION .
- Refer to REMOVING THE TRANSFER BOX .
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.
NOTE:
TECHNICAL INFORMATION
Do not use a drill.
Shavings can damage the transmission and result in failure of the transmission.
Do not use a drill.
Shavings can damage the transmission and result in failure of the transmission.

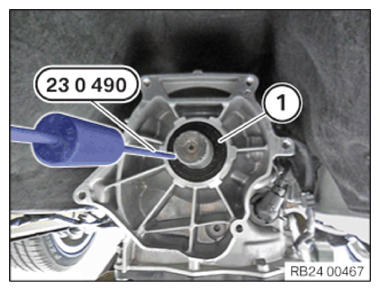

- Make a hole in the radial shaft seal (1) with a center punch.
- Screw in special tool 0 491 454 (23 0 490) .
- Drive out radial shaft seal (1) with impact weight.
