Installing the radial shaft seal for the output flange (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z, GA8HP75HZ)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Oil the sealing lip of the radial shaft seal.
- Strike in the radial shaft seal with the special tool 0 496 596 (33 0 150) up to the stop .
- Replace nut.
Parts: Nut

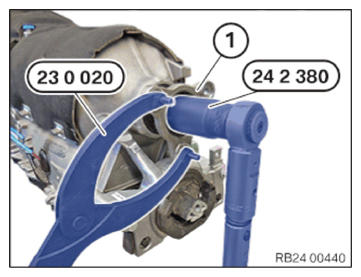

- Brace the output flange (1) with the special tool 0 491 440 (23 0 020) .
- Tighten the nut with the special tool 0 494 212 (24 2 380) .
- Secure nut with a mandrel (8 mm) by caulking.
TIGHTENING TORQUE SPECIFICATIONS
| Double hexagon nut/output flange | ||
| with sealing ring in output flange Replace nut |
Tightening torque | 60 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT HEAT SHIELD .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT THRUST FIELD .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
