Install rear anti-roll bar
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

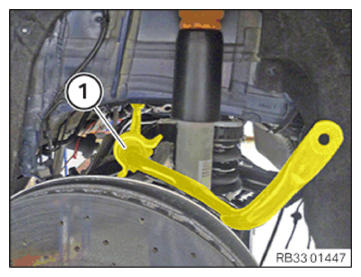

- Feed in the rear anti-roll bar (1) sideways.
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

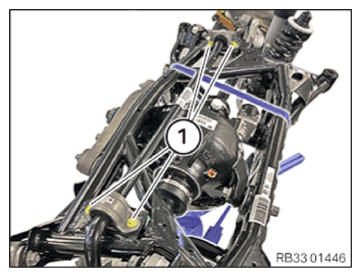

- Position the rear anti-roll bar on the rear axle support.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear anti-roll bar retainer on rear axle support | ||
| M8 Replace screws. | Tightening Torque | 28 Nm |
Follow-up work
- Refer to LIFTING REAR AXLE SUPPORT .
- Refer to LOOSENING THE LEFT AND RIGHT COIL SPRINGS .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT AND RIGHT THRUST FIELDS AND THE TORSION STRUT .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to SECURING THE CABLE TO THE REAR AXLE SUPPORT .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
