Replacing the ball joint in the wheel carrier
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
CAUTION:
Spring preload.
Injury hazard!
Injury hazard!
- The use of the specified special tool (tool) is mandatory.
- Carry out the described steps properly.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING REAR LEFT OR RIGHT WHEEL .
- Refer to TENSIONING THE COIL SPRING .
- Refer to REMOVING THE CAMBER CONTROL ARM .
NOTE:
Description is for right component only. The procedure on the left side is identical.
- Pull out the ball joint with the special tools 2 240 469, 2 360 786 (A) and 0 496 552 (33 3 010) from the wheel carrier.
- Replace the ball joint (1).
Parts: Ball joint

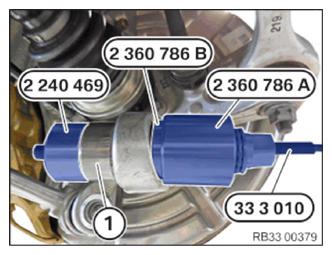

- Pull in the ball joint (1) with the special tools 2 240 469, 2 360 786 (B) , 2 360 786 (A) and 0 496 552 (33 3 010) up to the stop in the wheel carrier .
Follow-up work
- Refer to INSTALLING THE CAMBER CONTROL ARM .
- Refer to RELIEVING TENSION ON COIL SPRING .
- Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE CAMBER LINK TO THE SHOCK ABSORBER AND THE REAR AXLE SUPPORT .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE CAMBER LINK TO THE WHEEL CARRIER .
