Installing the servomotor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Position the servomotor so that the gearing is aligned in an interlocking way.

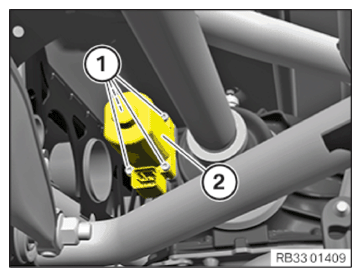

Position the servomotor (2).
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Servomotor on rear axle differential
M6	tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

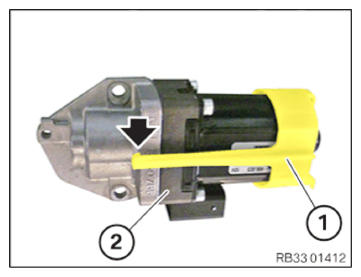

Slide the holder (1) onto the servomotor (2) until the lock engages (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten the cable on holders (3).
Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to REPLACING (BEVEL GEARS OR SERVOMOTOR): CARRYING OUT THE "DELETE WEAR DATA" SERVICE FUNCTION .
