Removing the pressure line between the air conditioning compressor and the air conditioning condenser
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT and NOTES FOR REPAIR WORK ON AIR CONDITIONING .
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
CAUTION:
Residual pressure in the heating and air conditioning system.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.

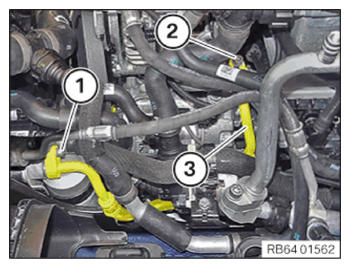

- Loosen screws (1).
- Loosen screw (2).
- Guide out and remove pressure line (3).
