Installing the pressure line between the air conditioning compressor and the air conditioning condenser
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace O-rings.
Parts: O-rings

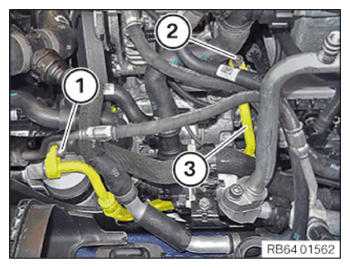

- Feed in the pressure line (3) and position it correctly.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
| M8 | tightening torque | 19 Nm |
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant lines to air conditioning condenser/connecting piece | ||
| M6 | Tightening torque | 13 Nm |
Follow-up work
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
