Installing air conditioning condenser
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

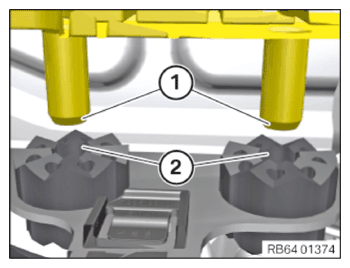

- Check the rubber mounts (2) for damage and replace the rubber mounts (2) if necessary.
- Make sure that the air conditioning condenser (1) at the bottom is correctly inserted in the rubber mount (2).

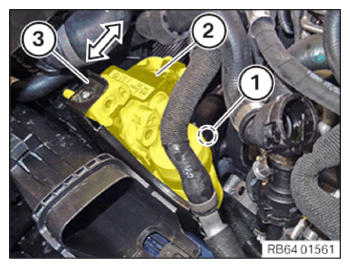

- Feed the air conditioning condenser (2) in from above and install it.
- Slide the air conditioning condenser (2) in air conditioning condenser into the holder (3) and position it correctly.
- Attach the hose support (1).
- Replace O-rings.
Parts: O-rings

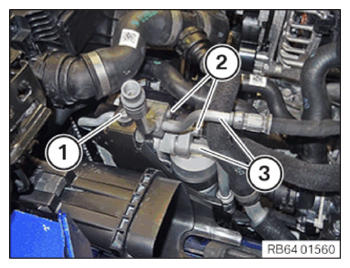

- Fit the refrigerant lines (3).
- Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant lines to air conditioning condenser/connecting piece | ||
| M6 | Tightening torque | 13 Nm |
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Air conditioning condenser holder on body | ||
| Nut M6 | tightening torque | 8 Nm |
| M6 screw | tightening torque | 8 Nm |

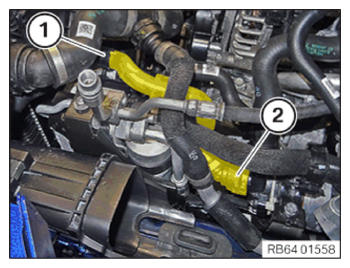

- Slide the coolant hose (1) and lock it correctly.
- Feed in and correctly position the coolant hose (2).
- Slide the coolant hose (2) and position it correctly.

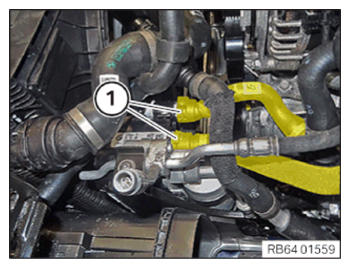

- Insert the hose support (1).
Follow-up work
- Refer to SECURING THE ENGINE OIL COOLER .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to EVACUATING AND CHARGING CONDITIONING .
