Removing the left ventilation grille
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING THE GAP COVER .
- Refer to REMOVING THE INSTRUMENT CLUSTER .
- Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .

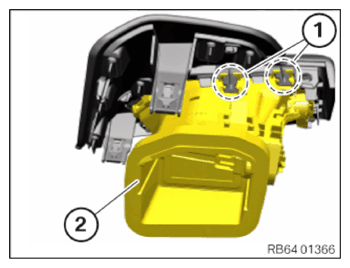

- Disengage the detents (1) on the ventilation grille (2).

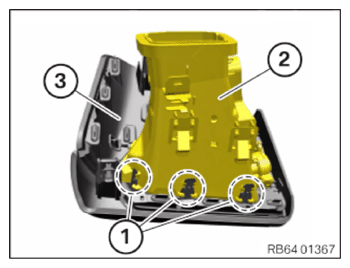

- Disengage the detents (1) on the ventilation grille (2).
- Remove the ventilation grille (2) from the decorative strip (3).
