Installing the left ventilation grille
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

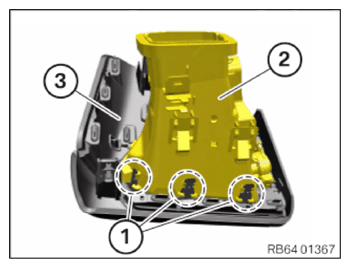

- Place the ventilation grille (2) on the decorative strip (3) and position it correctly.

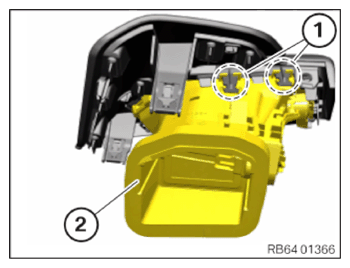

- Engage the detents (1) at the ventilation grille (2).
- Engage the detents (1) at the ventilation grille (2).
Follow-up work
- Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to INSTALLING THE INSTRUMENT CLUSTER .
- Refer to INSTALLING THE GAP COVER .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
