Removing the air conditioning control panel for the rear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .

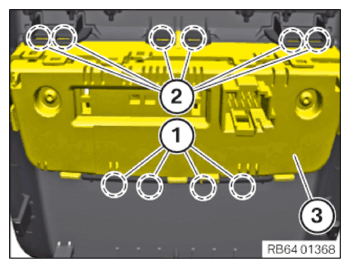

- First release the air conditioning control panel at the detents (1) then release at the detents (2).
- Remove the air conditioning control panel (3) from the decorative strip.
