Installing the center of the ventilation grille with the integrated air conditioning control panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

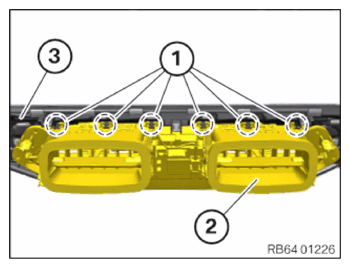

- Place ventilation grille (2) on decorative strip (3) with the integrated air conditioning control panel and position it correctly.
- Engage detents (1) on ventilation grille (2).

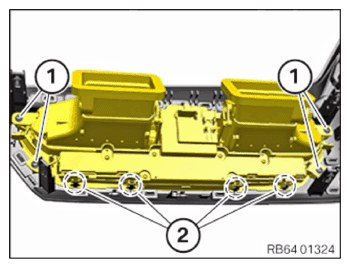

- Engage the detents (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Ventilation grille to decorative strip/instrument panel | ||
| Screw | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
