Remounting the electric auxiliary heater (heating and air-conditioning unit removed)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Heating and air-conditioning unit removed.
Removing the blower for the heating and air-conditioning unit

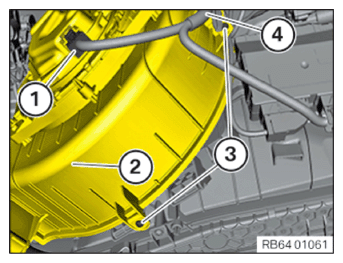

- Unlock and disconnect the plug connection (1) from the blower motor (2).
- Loosen screws (3).
- Pull of the cable clip (4) from the housing of the blower motor (2).

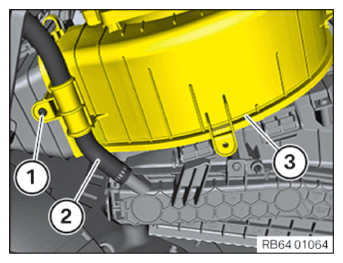

- Loosen screw (1).
- Guide out the hose (2) from the housing of the blower motor (3).
- Remove the housing of the blower motor (3).

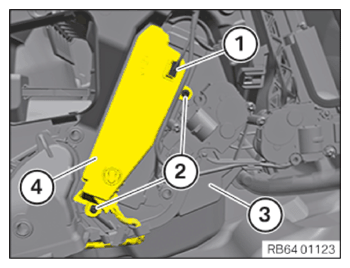

- Unlock plug connection (1) and disconnect.
- Loosen screws (2).
- Remove the electric auxiliary heater (4) from the heating and air-conditioning unit (3).
- Correctly position the electric auxiliary heater (4) and push it into the heating and air-conditioning unit (3).
- Connect connectors (1) and lock.
- Tighten screws (2).
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner | ||
| Screw | Tightening torque | 1.2 Nm |
Install the blower for the heating and air-conditioning unit
- Position the housing of the blower motor (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner | ||
| Screw | Tightening torque | 1.2 Nm |
- Feed in the hose (2) at the housing of the blower motor (3).
- Connect and lock plug connection (1) of the blower motor (2).
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner | ||
| Screw | Tightening torque | 1.2 Nm |
- Secure the cable clip (4) on the housing of the blower motor (2).
