Installing right footwell temperature sensor (B183)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

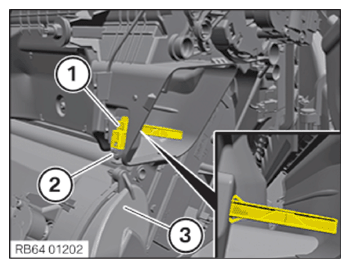

- Insert footwell temperature sensor (1) into heating and air-conditioning unit (3) and lock.
- Connect connector (2) .
Follow-up work
- Refer to INSTALLING THE HOLDER FOR THE HEAD UNIT .
- Refer to INSTALLING THE HEADUNIT HIGH (HU-H) .
- Refer to INSTALLING AUDIO CONTROL UNIT .
- Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INITIALIZING COMPONENT PROTECTION .
