Installing right front mixed air flap motor (M83a)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

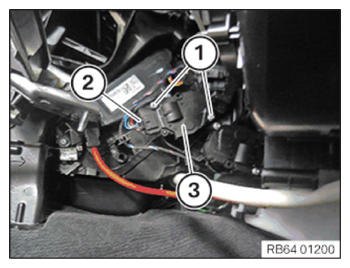

- Install the right front mixed air flap motor (3) and position correctly.
- Connect connector (2) .
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner | ||
| Screw | tightening torque | 1.2 Nm |
Follow-up work
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ADDRESSING THE CONTROLLER DRIVE .
