Removing the blend flap motor (M69)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
Preliminary work
- Refer to ENTERING THE INSTALLATION POSITION OF THE DAMPER MOTOR .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to VEHICLES WITH AIRBAG MODULE: REMOVING KNEE AIRBAG .
- Refer to REMOVING THE RIGHT AIR DUCT .
- Refer to REMOVING THE BLOWER FOR THE HEATING AND AIR-CONDITIONING UNIT .

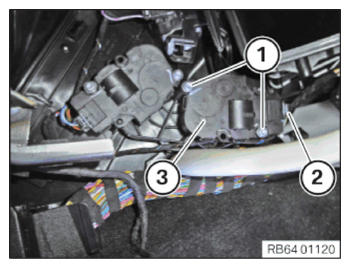

- Disconnect plug connection (2).
- Loosen the screws (1) and remove the blend flap motor (3).
